Suitable for 3C, food and beverage, metal parts, education,
plastic, pharmaceutical and other industries.
Installation environment
Temperature 0-45°CT Humidity 20~80%RH (no condensation);
Vibration acceleration 4.9m/S² (0.5G) or less;
Altitude 1000m or less;
No ignition, corrosive gases, liquids, no splashing water, and less
oil, dust;
Away from electromagnetic sources;
Away from magnetic field.
| Input/Output Signals |
| Standard 16 I / 16O 24VDC |
|
| Robot mass | Application Scenarios |
| 63 KG | loading and unloading, handling, sorting, assembly, labeling,
dispensing |
| Installation method | Floor |
|
Technical Specification Of Robot Control Cabinet
| 420(W)* 450 (D)* 200 (H) mm (including protrusions) |
| Rough quality | Cooling method |
| 18.5 KG | Direct cooling |
| Power specifications |
| AC220V 50/60HZ |
| Grounding | Input/Output signal |
| Industrial grounding (special grounding with a grounding resistance
of 100Ω or less) | General purpose signals: 16 inputs, 16 outputs (16 in 16 out) |
| Position control method | Memory capacity |
| Serial communication mode EtherCAT.TCP/IP | JOB: 200,000 steps, 10,000 robot commands (200M total) |
| LAN(Host link) | Control mode |
| Ethercat (1) TCP/IP (1) | Software servo (position control) |
| Ambient temperature | Driver unit |
| Energized: 0~"45°C; Stored: -20~"60°C | Servo package for AC servo (total 4 axes); |
| I/F | Serial port I/F |
| RS485(1X)RS422(1X)RS232(1X)CAN接口 (1X) | USB(1X) |
| Relative humidity | Vibrate |
| 10%~90%(No condensation) | 0. 5G or less |
| Altitudes |
| The maximum ambient temperature decreases by 1% for every 100m
increase in elevation above 1000m, and can be used at a maximum
elevation of 2000m |
| Other |
| No dust, swarf (including coolant), organic solutions, fumes,
water, salts, pharmaceuticals, anti-rust oils, strong microwaves,
ultraviolet rays, X-rays, radiation exposure. |
Teaching pendant specification of robot
| Overall dimensions | Gross weight |
| 280(L)mm | 220(W)mm | 120(H)mm | 0.6KG |
| Material | Reinforced plastics | Display screen | 8-inch color LED, touch screen 640 * 480 pixels |
| Protection IP | IP54 | Cable Length | Standard 5m, option 15m |
| Manipulator button | | |
| Selection keys, axis operation keys, value/application keys, mode
switching keys with key (teach mode, reproduction mode, remote
mode), emergency stop key, enable key, USB port(1X). |
Robot External Dimensions And Range Of Motion

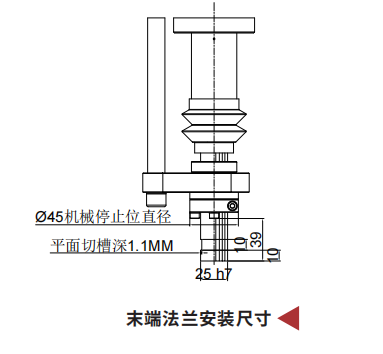

Robot End Flange Installation Size

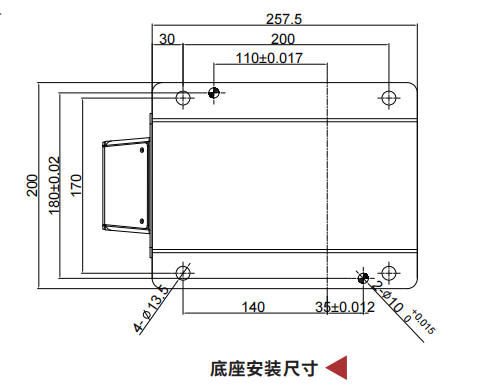

Robot Base Installation Size
Packing mode
In wooden box for maritime transport
Robot Case Reference
FAQ About Robot
1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with
industry standards and regulations. What certifications does it
have?
Answer: This industrial robot has passed strict industry
certifications and standards, including ISO quality management
system certification and CE certification
2.Question:[Technical support] I need an industrial robot with reliable technical support and
training services. Do you offer support in this area?
Answer: Yes, we provide comprehensive technical support and
training services, including operation training, maintenance
training, and on-site support to ensure you can fully utilize the
performance and capabilities of the industrial robot.
3.Question:【Warranty】how about your warranty
Answer :Yes, our products come with a certain period of warranty.
The specific warranty period and coverage may vary depending on the
product model and region. Please provide your location and the
product model you are interested in to obtain more accurate
information. In general, the warranty period is 12 months.
4.Question:【Payment】how about the payment if we place orders to you .
Answer :We accept multiple payment methods, including but not
limited to TT, L/C, etc. You can choose the payment method that is
convenient for you.
5.Question:[Customization] Do you provide any possible customized service .
Answer: Yes, we provide customization services within a certain
range, such as color customization, boot UI customization, LOLO
customization, etc., according to the specific requirements of
customers. Please provide your customization requirements, and we
will do our best to meet your needs.
6.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to
understand the long-term operating costs.
Answer: The maintenance costs for this industrial robot are very
low. We provide maintenance services including regular inspections,
preventive maintenance, and quick-response technical support to
minimize your operating costs.
7.Question: [Easy to use ] I expect efficient programming capabilities in the industrial
robot for quick deployment and adjustments on the production line.
Does it offer efficient programming?
Answer: This industrial robot comes with user-friendly programming
interfaces and advanced programming capabilities, allowing for
quick and easy deployment and adjustments on the production line.
8.Question: [Reliability] How reliable is the industrial robot? I need a stable and
dependable machine to ensure production continuity.
Answer: This industrial robot undergoes rigorous quality control
and testing, ensuring excellent reliability and stability. It is
built with advanced technology and high-quality materials to ensure
continuous production.
