Painting robot for automotive and spare parts , GR6150-2500 payload 15kg reach 2500mm
Robots highlights:
Provide ground, ceiling suspension, wall hanging, Angle and other installation methods;
The three-stage design of the upper arm facilitates the disassembly, installation
and integration of the segments;
The large aperture hollow wrist is configured, and the paint pipeline can be
arranged inside the wrist for easy integration;
Supports expansion linkage additional axis;
Optional offline programming software, standard spray painting process package, built-in
peripheral equipment I/O points, simple programming, easy to integrate;

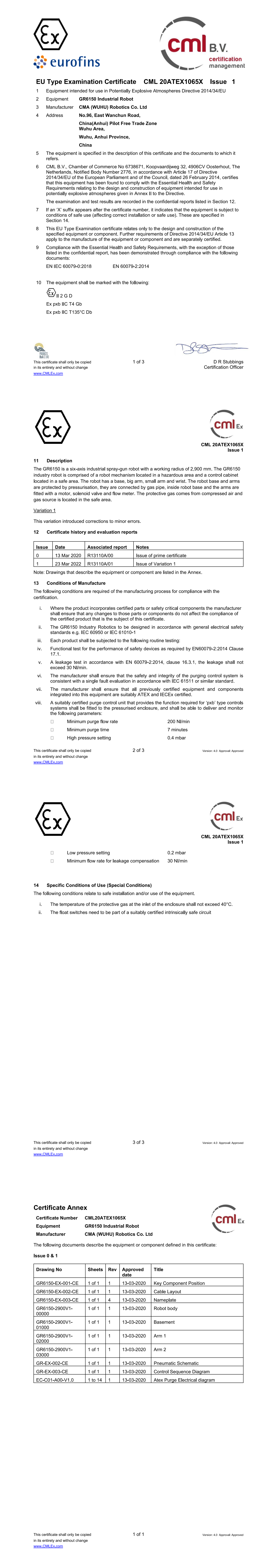

Through the ATEX explosion-proof certification of China, EU and ITTC, it can be
used in 1 zone gas and 21 zone dust hazardous working environment.
Applicable scene:
Developed for automotive painting, suitable for automotive body and interior and
exterior parts and other automotive parts painting;
Suitable for automotive and parts, engineering vehicles, special vehicles and
other large workpiece spraying.
Applicable industry:
It is suitable for automobile and auto parts, commercial vehicles, special
vehicles, two-wheeled and three-wheeled vehicles, rail transit, construction
machinery, aviation, ships and other industries.
| Wrist can carry max. | 15kg |
| Reach the radius | 2500mm |
|
| Repeated positioning accuracy | ± 0.2mm |
|
Range of motion of
each axis
&
Maximum single axis
speed |
| Range of motion
of each axis | Maximum single axis speed |
|
|
| J1 | ±160° | 100°/sec |
|
| J2 | ±135° | 100°/sec |
| J3 | -60°/+245° | 120°/sec |
|
| J4 | ±540° | 360°/sec |
|
| J5 | ±540° | 420°/sec |
|
| J6 | ±540° | 530°/sec |
The wrist allows
the load torque | J4 | 44.2N·m |
|
| J5 | 28.8N·m |
|
| J6 | 15.1N·m |
The wrist allows it
Load rotational
inertia | J4 | 1.17kg·m² |
|
| J5 | 0.87kg·m² |
|
| J6 | 0.15kg·m² |
| Structure | 6 Axis Series Structure |
| Installation | Floor,Upside-down,Wall,Angel |
| IP Grade | Robot | IP65 |
| Cabinet | IP54 |
| Explosion Proof | China-GAS | Ex ib mb px IIC T4 Gb |
| ATEX -GAS | II 2G Ex pxb IIC T4 Gb |
| ATEX -Dust | II 2D Ex pxb IIIC T135°C Db |
| Enviroment Requirements | Voltage | 3~AC380V(±10%) |
| Power Capacity | 5.0 kVA |
|
| Temperature | 0~ 45℃ |
|
| Humidity | RH≤80%(No Condensation) |
| Arm Payload | Outer Arm | 15 kg |
| Inner Arm | 15 kg |
| Weight | Robot | 640 kg |
| Cabinet | 160 kg |
| Project | Standard layout | Optional configuration |
| Driver Unit | 6 axes | 6+2 axes |
| Electrical cabinet-body-Cable | Static: 8 m | Longest: 30m |
| / | Maximum drag chain length: 30m |
| Teaching device cable | 8m | Longest: 30m |
| Digital quantity DI/DO | 16 / 16 | / |
| Modelled quantities AI/AO | / | Can add analog hardware module, up to 4 channels |
| Field bus | Ethercat | ProfiNet | CC link |
| Process capacity | 1 GB | / |
| External port | Ethercat
Network port | / |
| software package | Painting package |
|
|
| The conveyor belt tracks |
| Optional |
|
| Color | RAL6018 | Customerize |
|
